How to choose high temperature roller sleeve and endless felt for aluminum extrusion handling table

How to choose high temperature roller sleeve and endless felt for aluminum extrusion handling table

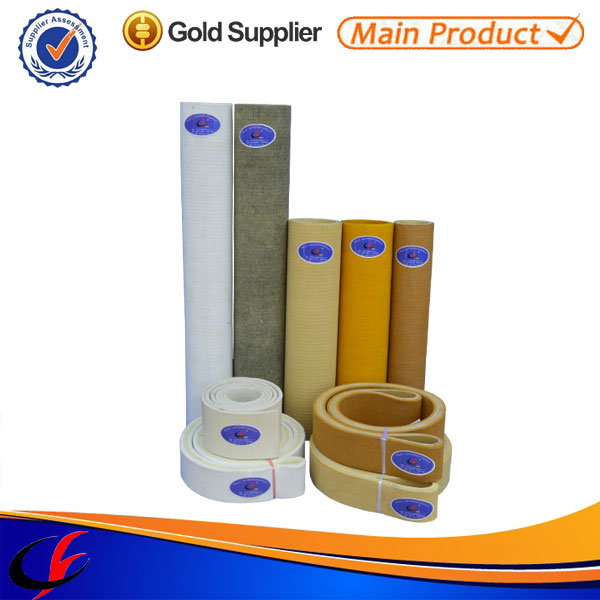

I. Roller Sleeve:

1.Roller-PK

Colour:Brown+Yellow

Materials:PBO+Kevlar

Good feartures:

1).600℃ high temp roller

2).Highest temperature:600℃ short-term(15 minutes),long-term 550℃

3).600℃ rollers are only used before cutting, to improve scars caused by the graphite effectively

2.Roller-K

Colour:Yellow

Materials:100% Kevlar

Good feartures:

1).480℃ high temp roller

2).highest temperature:480℃ short-term(15minutes),long-term 200℃

3).480℃ rollers are only used in the high temperature zone after cutting.

3.Roller-NM

Colour:Off-white

Materials:100% Nomex

Good feartures:

1).280℃ Nomex roller

2).High temperature resistance: Thermostat 280℃

3).280℃ Nomex rollers are only used in saw gauge table of 2000T or above machine.

4.Roller-PE

Colour:White

Materials:100%Polyester

Good feartures:

1).180℃ Polyester rollers

2).High temperature resistance: Thermostat 180℃

3).180℃ Polyester rollers are only used in the saw gauge and normal temperature zone.

5.Available Size:

Length:300-600mm

Thickness:4mm-12mm

Maximum Internal Diameter:168mm

Minimum Internal Diameter:20mm

Density:4200g/㎡.mm

Hard type: Resin treatment

Avoids damages to profiles during handling.

Avoids black spots due to temperature changes.

Absolutely asbestos free and non-toxic.

II. Seamless Conveyor Belt

1.Belt-PKN

Colour:Brown+Yellow

Materials:PBO+Kevlar+one nomex tension member

Good feartures:

1).600℃ high temp. seamless conveyor belt

2).Highest temperature:600℃ short-term(15 minutes),long-term 550℃

3).Only suitable for runout table and cooling table(high temp. zone)

2.Belt-KN

Colour:Yellow

Materials:Kelvar+one Layor Nomex Tension Member

Good feartures:

1).480℃ high temp seamless conveyor belt

2).highest temperature:480℃ short-term(15minutes),long-term 200℃

3).Only suitable for runout table and cooling table(high temp zone)

3.Belt-NNP

Colour:Off-white

Materials:100%Nomex+one layor Nomex tension member

Good feartures:

1).280℃ Middle temp.seamless conveyor belt

2).High temperature resistance: Thermostat 280℃

3).After stretching conveyor only(middle temp zone)

4.Belt

Colour:White

Materials:100%polyester+one layor Nomex tension member

Good feartures:

1).180℃ low temp.seamless conveyor belt

2).High temperature resistance: Thermostat 180℃

3).Application for storage table,saw table,Loading & unloading line For anodizing and painting(room temp zone)

5.Available size

Width :20mm-1600mm

Length：1620mm-16000mm

Thickness：4mm-12mm

Density：4200g/mm2

III.Felt Pad Series

1.Pad-KK Colour:Yellow    Materials:100%Kevlar       480℃

2.Pad-NP Colour:Off-white  Materials:Nomex+Kevlar     280℃

3.Pad-PE Colour:White     Materials:100%polyester     180℃

IV. Double-sided Felt Strip for Loading Rack

1.280℃ Double side protection Nomex,felt strip for packing iron rack(Used in aging oven)

Good feartures:

1). Standard size:30-50mm length:20000mm(20m/roll)

2). Thickness:6mm、8mm、10mm

3). Features:To reduce the scrathes caused by the iron rack in the profile transfer process.

4).Mostly suitable for:the aluminium profiles with the high quality surface requirement.

2.Good feartures:180℃ Double side protection Nomex,felt strip for packing iron rack(Used in product packing)
